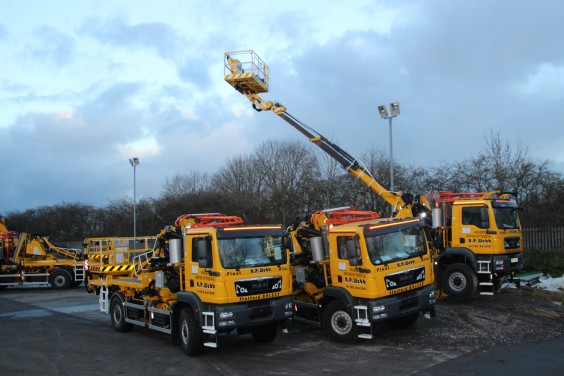

Rail-Ability Rail-Man Access Platform

The standard base vehicle is a Rail-Ability hybrid MAN TGM 4×4 18.290 rigid body truck equipped with a 3 person cab and is fitted with a pair of Rail-Ability designed, constructed and hydrostatically driven and braked rail axles. MEWP capacity: 500 kgs to 14 metres. Also includes crane and winch. Fitted with pantograph.

  • MEWP features include raised platform deck height approx. 13m
  • Stowed platform deck height approx. 2.5m, platform can be lowered to the ground
  • Deck height approx. 2m
  • Platform deck size is 1.2m wide x 2.2m long
  • Maximum platform load capacity in road mode and in rail mode is 500kgs
  • Platform capacity up to 5 people plus tools
  • 300⁰ platform rotate
  • With a platform load of 500kgs the horizontal extension is 4.5m and vertical extension of 14m with the stabilisers retracted
  • With the stabilisers deployed the horizontal extension is 10m
  • The standard base vehicle is a Rail-Ability hybrid MAN TGM 4x4 18.290 rigid body truck equipped with a 3 person cab and is fitted with a pair of Rail-Ability designed, constructed and hydrostatically driven and braked rail axles
To check availability or to place a hire

Email: hireorders@apwebbplanthire.co.uk
or call the Plant Hire department on 01785 241 335
